HRD Vincent Model L, 1932
Model L avvek markant från övriga modeller genom att ha en tvåtaktsmotor. Trots den avsevärt lägre prisnivån kom dock endast ett exemplar att byggas.

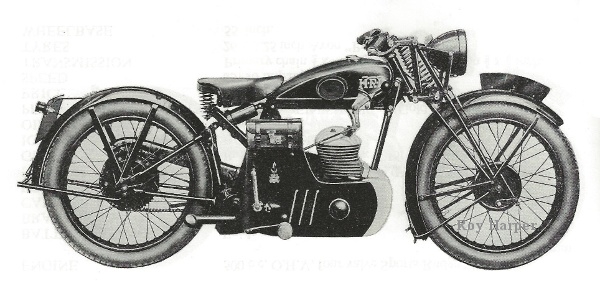

This picture and specifications are from the book Vincent HRD Gallery with permission from the author, Roy Harper
...Tekniska data
...Specifications
Motortyp Villiers 1-cyl. tvåtakt Engine typ Villiers 1-cyl. twostroke
Slagvolym 249 cc Capacity 249 cc
Borr x slag 63 x 80 mm Bore x stroke 63 x 80 mm
Förgasare Villiers twist grip Carburettor Villiers twist grip
Tändsystem Brytartändning med spole Ignition Coil
Elsystem / ljus BTH dynamo, 6 volt 30 watt Electric / lightning BTH dynamo, 6 volt 30 watt
Växellåda Albion 3-växlad Gearbox Albion 3-speed
Transmission Kedja 1/2" x 5/16" Transmission Chain 1/2" x 5/16"
Bromsar 6" fram & bak Brakes 6" front and rear
Däck, fram & bak 25" x 3,00" Avon Tyres, front & rear 25" x 3,00" Avon
Bränsletank 2 1/4 gallons (10,2 liter), lackad svart Petrol tank 2 1/4 gallons, painted black
Hjulbas 55" (140 cm) Wheelbase 55"
Ram Vincent Solid Backbone fjädrad, lackad svart Frame Vincent, solid backbone in one with head lug, sprung, painted black
Framgaffel Druid Front fork Druid
Toppfart 55 - 60 Mph (89 - 97 Km/t) Speed 55 - 60 Mph
Pris £ 39-10-0d Price £ 39-10-0d
