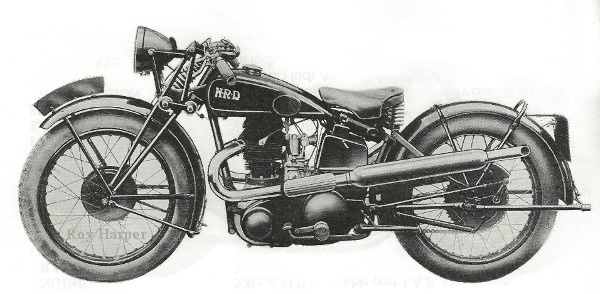

1932 års modell var en stor nyhet med den nya "diamant-ramen" med bakfjädring. 18 exemplar tillverkades detta år.
 ...Tekniska data |
 ...Specifications |
||
| Motortyp | Rudge Python 1-cyl. OHV 4-valve | Engine typ | Rudge Python 1-cyl. OHV, 4-valve |
| Slagvolym | 499 cc | Capacity | 499 cc |
| Borr x slag | 85 x 88 mm | Bore x stroke | 85 x 88 mm |
| Förgasare | Amal twist grip | Carburettor | Amal twist grip |
| Tändsystem | BTH magnet | Ignition | BTH magneto |
| Växellåda | Burman 4-växlad | Gearbox | Burman 4-speed |
| utväxling 4.45, 5.6, 6.9 och 12 | ratios 4.45, 5.6, 6.9 and 12 | ||
| Transmission | Kedja, primär 1/2" x 5/16" | Transmission | Chain, primary 1/2" x 5/16" |
| Kedja, sekundär 5/8" x 3/8" | Chain, secondary 5/8" x 3/8" | ||
| Bromsar | 7" fram & bak | Brakes | 7" front and rear |
| Däck, fram & bak | 26" x 3,25" Avon "Premier" | Tyres, front & rear | 26" x 3,25" Avon "Premier" |
| Bränsletank | 2 3/8 gallons (10,8 liter), lackad svart | Petrol tank | 2 3/8 gallons, painted black |
| Oljetank | 3 pints (1,7 liter) | Oil tank | 3 pints |
| Hjulbas | 55" (140 cm) | Wheelbase | 55" |
| Ram | Vincent Diamond fjädrad, lackad svart | Frame | Vincent Diamond, sprung, painted black |
| Framgaffel | Brampton eller Druid | Front fork | Brampton or Druid |
| Toppfart | 70 - 75 Mph (113 - 121 Km/t) | Speed | 70 - 75 Mph |
| Pris | £ 56-10-0d | Price | £ 56-10-0d |
