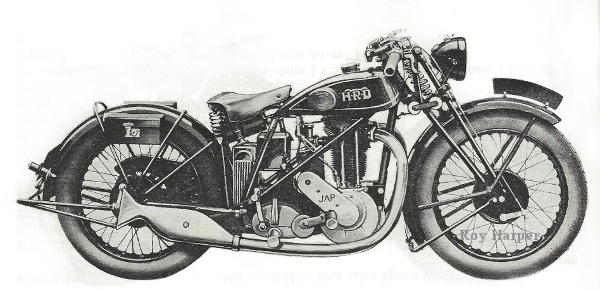

Denna modell kom att tillverkas i 25 exemplar detta år.
 ...Tekniska data |
 ...Specifications |
||
| Motortyp | JAP 1-cyl. OHV dubbelport | Engine typ | JAP 1-cyl. OHV, double port |
| Slagvolym | 499 cc | Capacity | 499 cc |
| Borr x slag | 85 x 88 mm | Bore x stroke | 85 x 88 mm |
| Förgasare | Bowden two lever | Carburettor | Bowden two lever |
| Tändsystem | BTH magnet/generator | Ignition | BTH magneto/generator |
| Växellåda | Burman 4-växlad | Gearbox | Burman 4-speed |
| utväxling 4.45, 5.6, 6.9 och 12 | ratios 4.45, 5.6, 6.9 and 12 | ||
| Transmission | Kedja, primär 1/2" x 5/16" | Transmission | Chain, primary 1/2" x 5/16" |
| Kedja, sekundär 5/8" x 3/8" | Chain, secondary 5/8" x 3/8" | ||
| Bromsar | 7" fram & bak | Brakes | 7" front and rear |
| Däck, fram & bak | 26" x 3,25" Avon "Tristud" | Tyres, front & rear | 26" x 3,25" Avon "Tristud" |
| Bränsletank | 2 3/8 gallons (10,8 liter), lackad svart | Petrol tank | 2 3/8 gallons, painted black |
| Oljetank | 3 pints (1,7 liter) | Oil tank | 3 pints |
| Hjulbas | 56" (142 cm) | Wheelbase | 56" |
| Ram | Vincent triangulär fjädrad, lackad svart | Frame | Vincent Triangulated, sprung, painted black |
| Framgaffel | Brampton | Front fork | Brampton |
| Toppfart | 70 - 75 Mph (113 - 121 Km/t) | Speed | 70 - 75 Mph |
| Pris | £ 75 | Price | £ 75 |
