HRD Vincent TT Model, 1935
Vincents egna motor trimmad ytterligare för tävlingsbruk. Såldes 1935 i 9 exemplar.

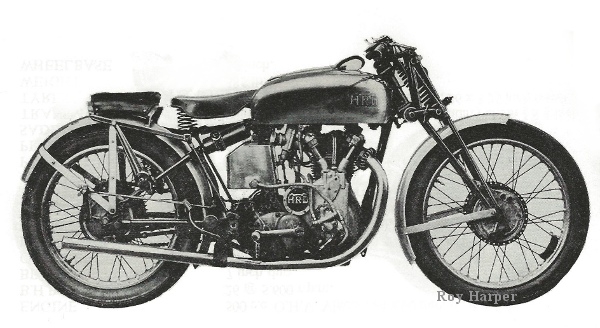

This picture and specifications are from the book Vincent HRD Gallery with permission from the author, Roy Harper
...Tekniska data
...Specifications
Motortyp Vincent 1-cyl. toppventil Engine typ Vincent 1-cyl. OHV
Slagvolym 499 cc Capacity 499 cc
Borr x slag 84 x 90 mm Bore x stroke 84 x 90 mm
Kompression 8 : 1 Comp. ratio 8 : 1
Effekt BHP 34 hk / 5.800 rpm Power BHP 34 hp / 5.800 rpm
Förgasare Amal TT 1 5/32" Carburettor Amal TT 1 5/32"
Tändsystem BTH TT replica magnet Ignition BTH TT replica magneto
Växellåda Burman 4-växlad. Utväxling 4,3 5,0 6,2 7,8 Gearbox Burman 4-spee. Ratios 4,3 5,0 6,2 7,8
Transmission Primärkedja: 0,375" duplex Transmission Primary chain: 0,375" duplex
Sekundärkedja: 5/8" x 1/2" Secondary chain: 5/8" x 1/2"
Bromsar 7" duo fram & bak. Bromssköldar i elektron Brakes 7" duo front and rear, Elektron brake plates
Däck, fram 26" x 3,0" Avon Ribbed Racing Tyres, front 26" x 3,0" Avon Ribbed Racing
Däck, bak 26" x 3,25" Avon Studded Racing Tyres, rear 26" x 3,25" Avon Studded Racing
Bränsletank 4 gallons (18,2 liter), lackad svart Petrol tank 4 gallons, painted black
Oljetank 1 gallon (4,5 liter) Oil tank 1 gallon
Hjulbas 55" (140 cm) Wheelbase 55"
Ram Vincent Diamond fjädrad, lackad svart Frame Vincent Diamond, sprung, painted black
Skärmar Duralaluminium med aluminiumstag Mudguards Duralumin, with aluminium alloy stays
Framgaffel Brampton Front fork Brampton
Vikt 335 lb (151 Kg) Weight 335 lb
Pris £ 98 Price £ 98
